T34D/T100 rotor complete

Groove Type: T

Diameter: 34mm

Surface Treatment: D

Working speed: ≤105000RPM

Yarn count range: 10, 12,14,16,21,24,30,32,36,40s

Yarn style: high yarn density, good evenness, low CV value, less hairiness and high single yarn strength, suitable for weaving.

Suitable raw materials: low impurity grade pure cotton, 100% viscose fiber, blending of polyester + cotton

Suitable Machines: Schlafhorst BD380/416/448, BD6/7

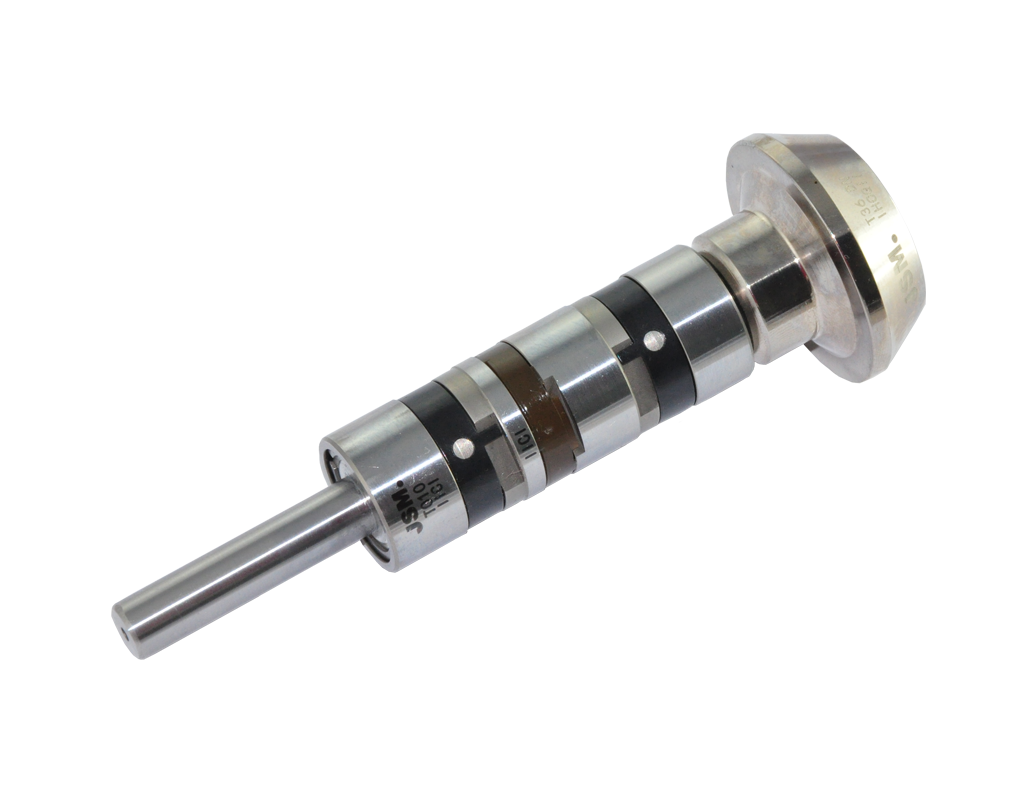

T34DN/T100 rotor complete

Groove Type: T

Diameter: 34mm

Surface Treatment: DN

Working Speed:  ≤105,000 RPM

Yarn count range: 10,12,14,16, 21,24,32s

Yarn style: compared with T34D, it has higher single yarn strength and evenness of single yarn are about 5% lower and hairiness is slightly more. Suitable for weaving

Suitable raw materials: pure cotton, recycled raw materials, blending of polyester and cotton with slightly higher impurity content

Suitable Machines:  Schlafhorst BD380/416/448, BD6/7


R34DN/T100 rotor complete

Groove: R

Diameter: 34mm

Surface Treatment: DN

Working Speed:  ≤105000RPM

Yarn Count Range: 10,14,16,24,21,32s

Yarn Style: compared with T34D, the yarn is slightly fluffy, the CV value slightly higher, the single yarn strength slightly lower, and the dyeability stronger

Suitable raw materials: pure cotton, blending of polyester + cotton, slightly higher impurities are allowed

Suitable Machines: Schlafhorst BD380/416/448, BD6/7

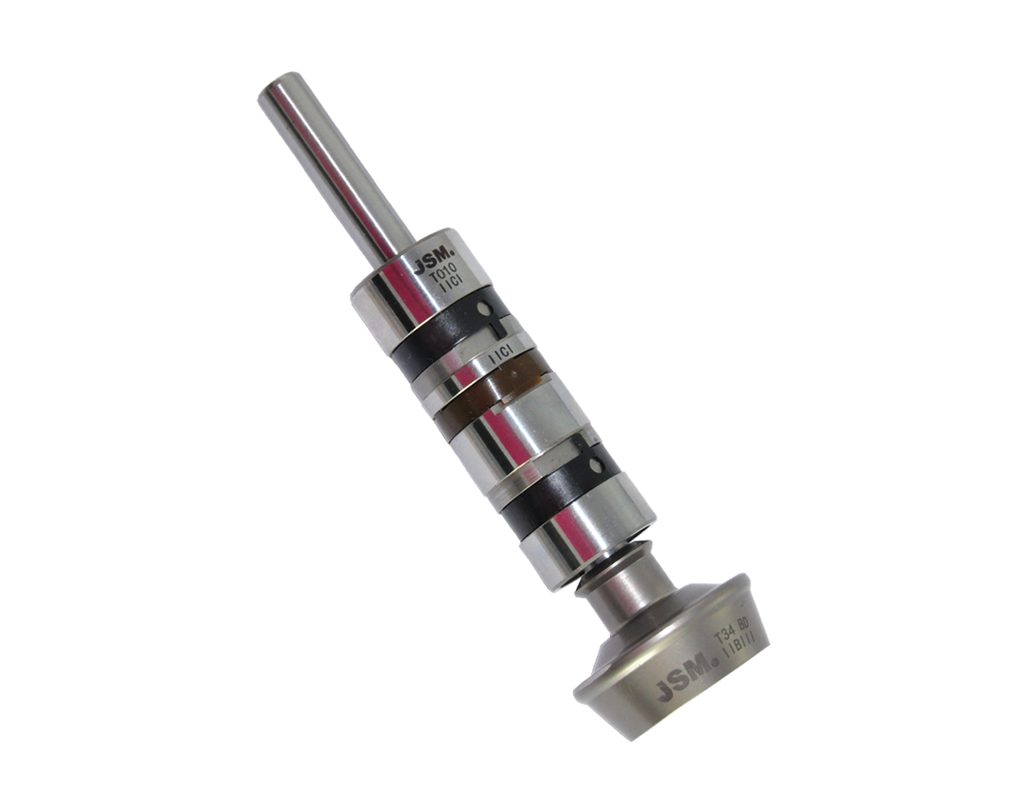

T34BD/T100 rotor complete

Groove: T

Diameter: 34mm

Surface Treatment: BD (weight-reducing steel rotor cup )

Working Speed: ≤105000RPM

Yarn Count Range: 16,21,24,32,40s

Yarn Style: high yarn density, good evenness, more stable quality than aluminum rotor spinning, suitable for weaving

Suitable raw materials: low impurity grade pure cotton, 100% viscose fiber, blending of polyester + cotton

Suitable Machines: Schlafhorst BD380/416/448, BD6/7

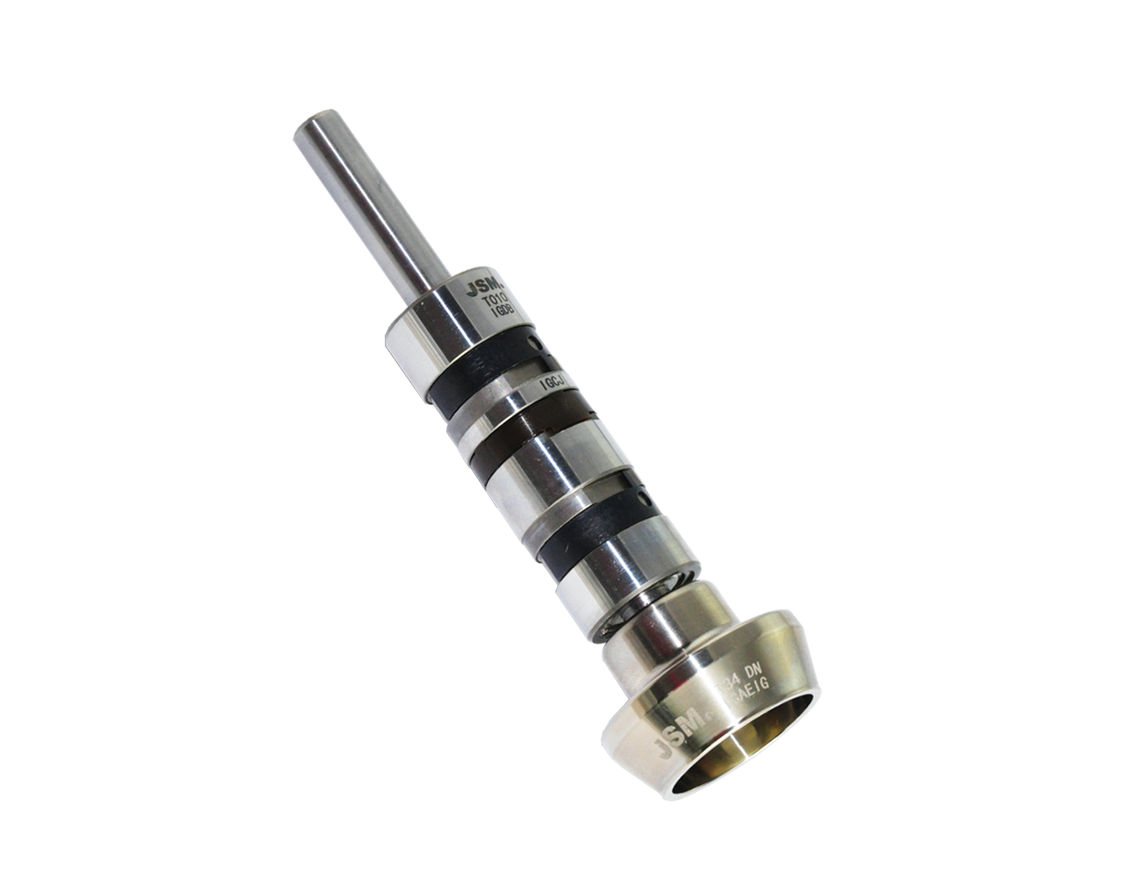

T36DN/PLC 72-6 rotor complete

Suitable Machines: Schlafhorst Saurer BD380/416/448

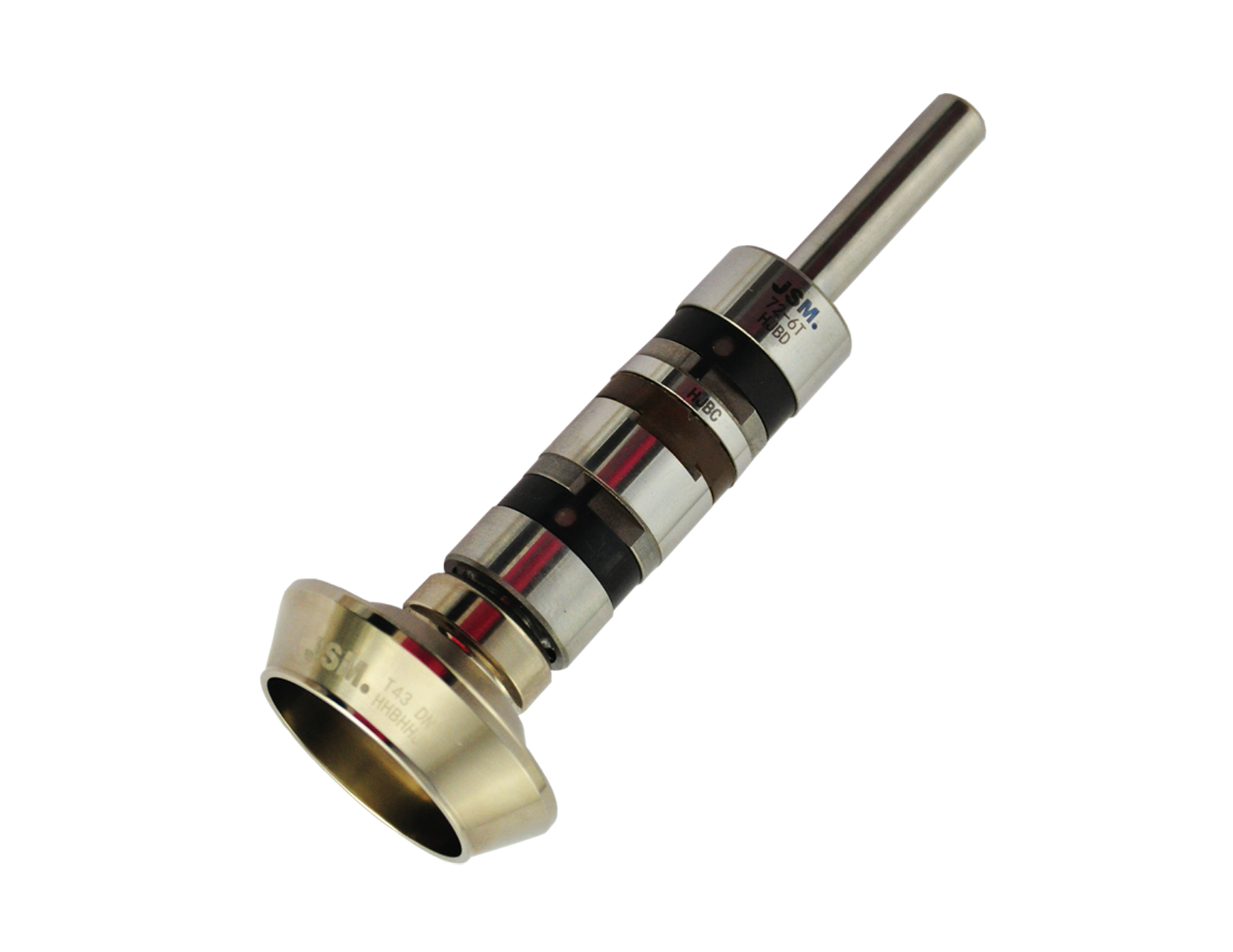

T43DN/PLC73-1-31 rotor complete

Groove: T

Diameter: 43mm

Surface Treatment: DN

Rotor bearing: PLC 73-1-31

Working Speed: ≤72000RPM

Yarn Count Range: 6,7,8,10,12,14,16s

Suitable Machines: Schlafhorst BD380/416/448


Introductions

Application fields

The company produces high-speed and high-quality rotor accessories with more than 140 models, of which more than 30 models are suitable for Zhuolang Schlafhorst BD series rotor spinning machines: BD320, BD330, BD380, BD416, BD448, BD480, BD6, BD7.
